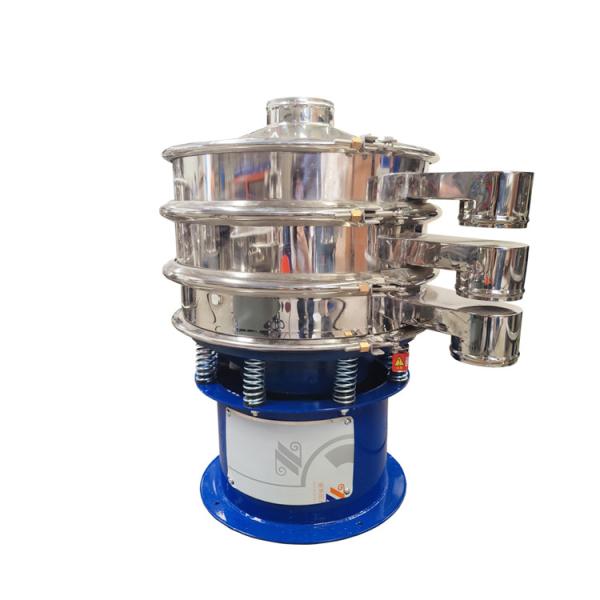

rotary vibrating screen
Working principle: the three-dimensional rotary vibrating screen uses the vertical motor as the excitation source. Eccentric weights are installed at the upper and lower ends of the motor to transform the rotation motion of the motor into a horizontal, vertical and inclined three-dimensional motion, and then transfer this motion to the screen surface, so that the material will make an outward involute motion on the screen surface. Therefore, this series of vibrating screens is called rotary vibrating screens.
| Model | YS-600 | YS-800 | YS-1000 | YS-1200 | YS-1500 | YS-1800 | YS-2000 |
| Diameter (mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 | Φ1800 | Φ2000 |
| Screen area
(m) |
0.24
|
0.45
|
0.67
|
1.0
|
1.6
|
2.43
|
3.01
|
| Screen size
(Mesh number) | |
| Feed particle
size (mm) |
<Φ10
|
<Φ15
|
<Φ20
|
<Φ30
|
| Frequency of
vibration (rpm) |
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
| Effective screen area
diameter (mm) |
Φ560
|
Φ760
|
Φ930
|
Φ1130
|
Φ1430
|
Φ1760
|
Φ1960
|
| Layer | |
| Power (Kw) | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Q: What information do I need to provide for getting an accurate quotation for round stainless steel screen:
1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. How many layers do you need?
4. The mesh size for each layer
5. Voltage and frequency
Q: How long for the delivery time?
A: 3-5 working days for standard products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation only you pay some commission.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
All the vibrating screen machine price is factory direct supply wholesale price.
