Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

EVERSUN Machinery (Henan) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

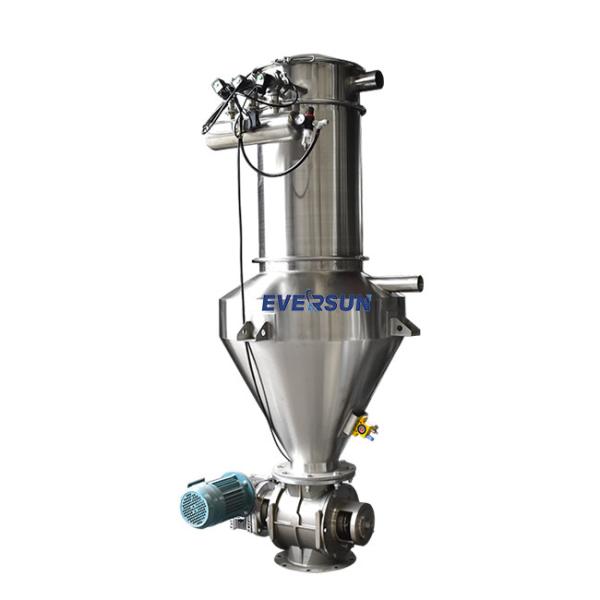

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

  • 1
  • 2

Brand Name : EVERSUN MACHINERY

Model Number : ZKS

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000SETS/YEAR

Delivery Time : within 7-15 work days

Packaging Details : Standard export wooden package

Name : Continuous Vacuum Conveyor

Function : Conveying material

Type : Electric type

Power : 1.5-11kw

Capacity : 200-6000kg/h

Application : Powder, granules, flake material

Contact Now

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

Product introduction:

1) The continuous vacuum conveyor is an advanced industrial material conveying equipment. It uses vacuum adsorption technology to continuously and uninterruptedly convey materials from the storage bin to the production equipment.
2) This equipment has good sealing performance, which can ensure that the entire conveying process is carried out in a dust-free and pollution-free environment, avoiding air contamination or loss of materials. At the same time, it is also equipped with an automatic control system that can automatically adjust the material delivery amount and conveying speed according to production needs, greatly improving the flexibility and stability of production.
3) The continuous vacuum
conveyor is widely used in chemical, food, pharmaceutical and other industrial fields, and has made important contributions to improving production efficiency and product quality.

Specifications:

Model Delivery(kg/h) Warehouse volume(L) Operating pressure(Mpa) Motor power(KW)
ZKJ-1 200-400 8 0.4-0.6 1.5
ZKJ-2 400-600 8 0.4-0.6 2.2
ZKJ-3 600-1200 12 0.4-0.6 3
ZKJ-4 1200-2500 42 0.4-0.6 5.5(Single pole)
ZKJ-6 1500-3200 42 0.4-0.6 5.5(Single pole)
ZKJ-7 2500-6000 60 0.4-0.6 7.5
ZKJ-10-6 About 6000(when transporting distance of 10m) 120 0.4-0.6 7.5(Roots Fan)
ZKJ-20-5 About 5000(when transporting distance of 10m) 280 0.4-0.6 11(Roots Fan)

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

Features and advantages:

1) Continuous operation: The equipment can continuously and uninterruptedly transport materials from the storage bin to the production equipment, improving the efficiency of material transportation.
2) Vacuum suction: The extraction and transportation of materials can be achieved through vacuum adsorption technology, which can effectively prevent the materials from being polluted or damaged by air.
3) Pollution-free environment: The vacuum sealing design can ensure that the entire transportation process is carried out in a dust-free and pollution-free environment.
4) Automatic control: The equipment is usually equipped with a PLC control system, which can realize automatic adjustment of parameters such as material delivery amount and conveying speed, improving the flexibility and stability of production.

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

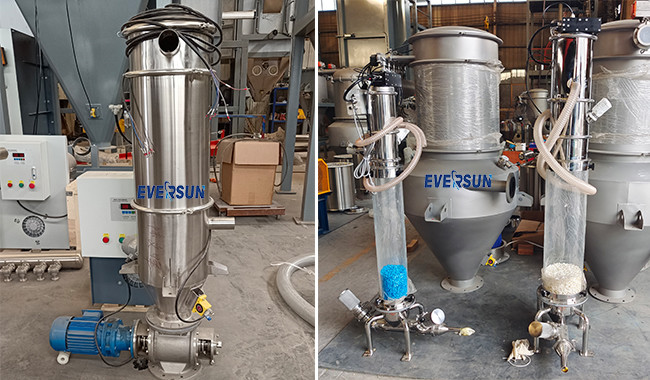

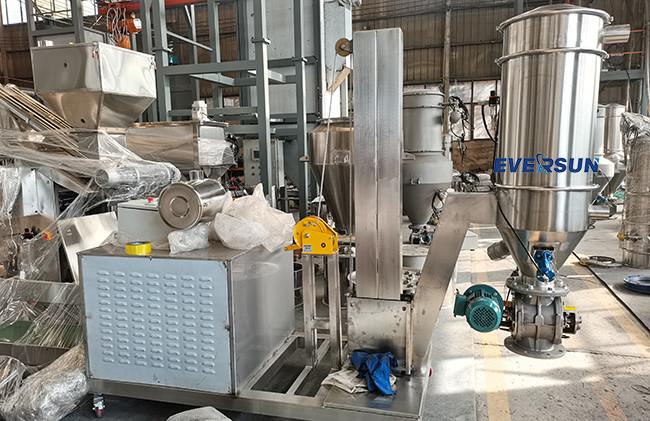

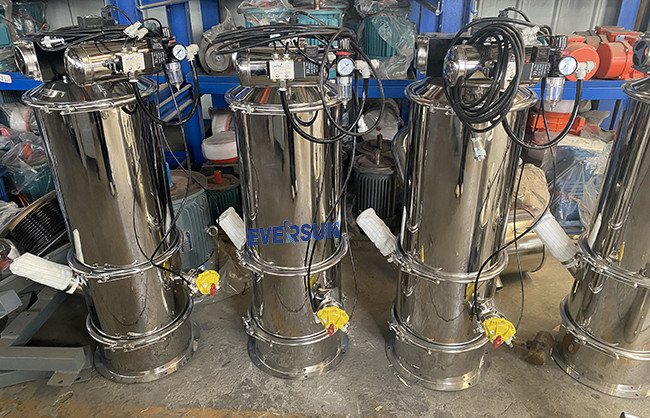

Product pictures:

We support customizing various types of vacuum feeders, such as electric vacuum conveyors, pneumatic vacuum conveyors, multi-outlet vacuum conveyors, 450 continuous vacuum feeders, etc., We can designed the machine according to your need

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

Application:

1. Powdered materials: such as chemical powders, food additives, pharmaceutical raw materials, etc. This type of fine, lightweight powdered materials is very suitable for continuous conveying by vacuum adsorption.
2. Particles materials: such as plastic particles, ceramic particles, metal particles, etc.
3. Granular materials: such as grains, seeds, coffee beans, etc.
4. Flake materials: such as metal flakes, ceramic sheets, plastic films, etc.

Hygienic Design ZKS Continuous Vacuum Conveyor Powder Granular Material Handling

Packaging & Delivery:

1. After production, the product will undergo a double quality review before shipping for you.

2. We use wooden boxes to pack the machine to prevent bumps during transportation.
3. Well-trained and disciplined packaging team.

4. Mature and professional freight forwarder. Transport options are sea or air.
5. After-sales service: If you have any questions or problems after receiving the product, please feel free to contact us. The problem will be solved for you immediately.

Competitive advantages:

1. We have strong R&D capabilities and advanced manufacturing processes, and can provide high-performance and high-reliability products.
2. Quality control advantages: Establish a complete quality management system, and strictly control all links from raw material procurement to production and manufacturing, after-sales service, etc.
3. Delivery advantages: With an efficient supply chain management system, we can quickly respond to customer needs, shorten delivery cycles, and improve customer satisfaction.
4. Service advantages: Provide professional technical support, maintenance, spare parts and other comprehensive after-sales services.
