The rotary vibrating screener is a high-precision fine powder screening machine,

characterized by low noise, high efficiency, and quick net changing within3-5

minutes. It features a fully enclosed structure, making it suitable for the screening

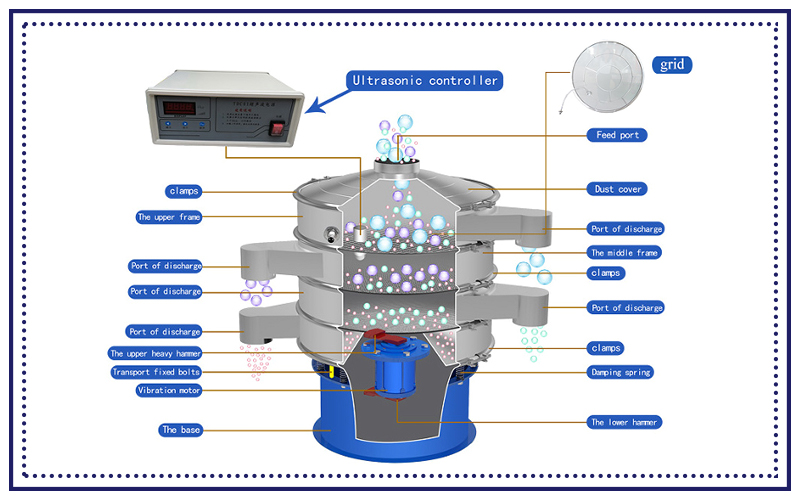

and filtering of particles, powders, and viscous liquids. The vibrating screener

uses a vertically mounted motor as the excitation source. Eccentric weights are

installed at the upper and lower ends of the motor, converting the motor rotational

motion into three-dimensional movements in horizontal, vertical, and inclined

directions, and then transmitting this movement to the screen surface. By adjusting

the phase angles at the and lower ends, the trajectory of the material on the screen

surface can be changed.





The motion path of the vibrating body of the rotary vibrating screen is a complex

three-dimensional curve in space, which projects a circle on the horizontal and

two identical ellipses on two perpendicular planes. In actual use, by adjusting

the relative phase of the eccentric blocks at both ends of the vibrating motor,

motion path of the material on the screen surface can be changed, thus

achieving different screening purposes.




1. Small size, light weight, easy to move, the direction of the outlet can be

adjusted arbitrarily, coarse and fine materials are automatically discharged, can

be automated or manual operation.

2. High screening accuracy, high efficiency, can be used for any powder,

granules, and liquids.

3. screen does not clog, no dust flies, the finest screening can reach 500 mesh

(28 microns), and the finest filtration can reach5 microns.

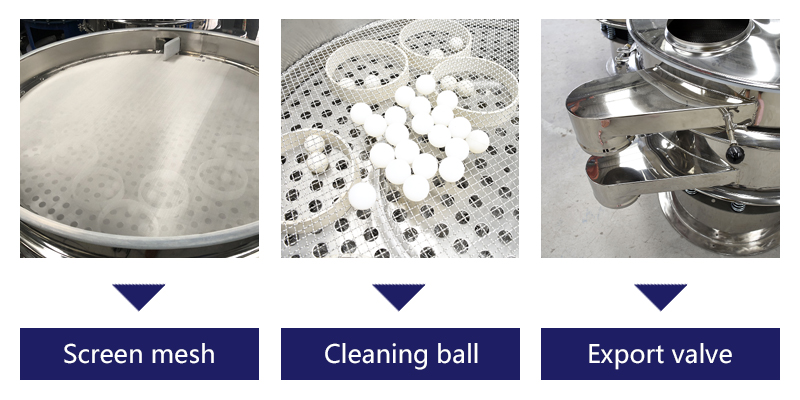

4. Unique screen frame design (mother and child style), long-lasting screen,

easy to change, only takes 3-5 minutes, operation, easy to clean.

5. No mechanical action, easy maintenance, can be used in single or multiple

layers, the parts in contact with the material are of stainless steel (except for

pharmaceutical use).

We have been specializing in the production of Screening and conveying equipment for 13 years.
China's vibrating screen industry top three. And we have done matching and OEM for many large
companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New
Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our
factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City,
Henan Province.

Food Grade Vibrating Sieve

Stainless Steel Powder Vibrating Sieve

Centrifugal Vibrating Sieve

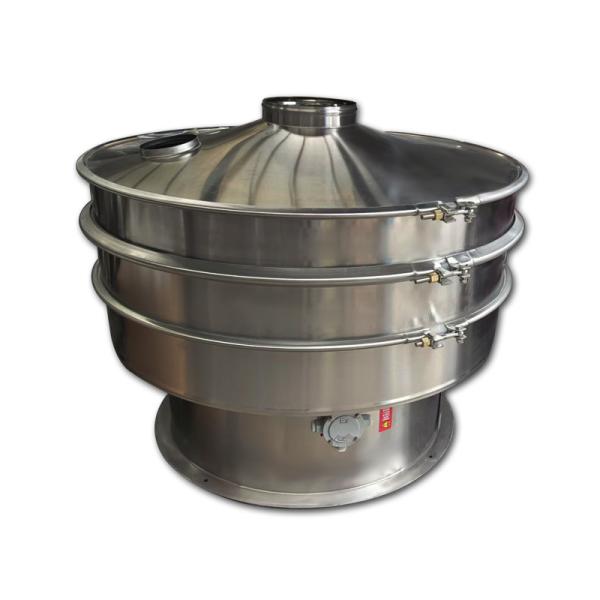

Stainless Steel Powder Vibrating Sieve Food Grade Centrifugal Sieve Images
