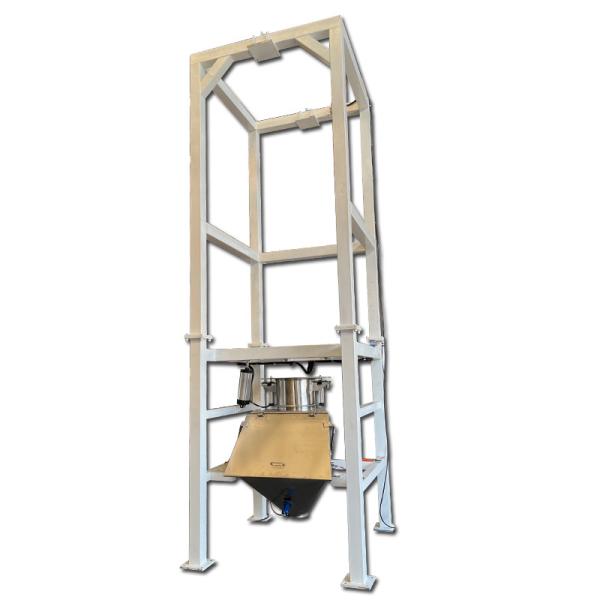

The ton bag dumping station is a powder equipment used for unloading materials.
Many raw materials are packaged in ton bags (space bags) convenient
transportation and storage, so the ton bag dumping is extremely important in the
entire production process. The ton bag dumping station is also known as a ton bag
un or ton bag splitter. To prevent environmental pollution and health hazards to
workers caused by dust during the opening of ton bags, most companies now use
ton bag dumping stations opening ton bags. The ton bag dumping station mainly
consists of a lifting mechanism (optional), a bag tapping mechanism, a bag opening
device, a dust removal device a ton bag dumping frame, an electrical control system,
and other components.
The ton bag is manually hung on the hoist, then the hoist rises to lift the ton bag.
During the descent of the bag, the bag opening is manually untied (for ton bags that
need to be recycled and reused) or directly cut open with the built-in cross-shaped
cutting (optional). After the packaging bag's discharge port is untied, the flow control
valve and the attached vibrating discharge device are opened to facilitate the flow of
gran material inside the packaging bag into the hopper below due to its own weight.
The material falls into the storage hopper under its own gravity to complete the un work.
This not only reduces the labor intensity during the bag breaking process but also
solves the problem of ton bags becoming clogged and difficult to discharge due to
moisture during the bag opening process.
1. The bulk bag unloading station has a simple structure and is easy to operate;
2. The patting equipment can ensure the material flows from the big bag to the next
process;
3. The integrated design of opening the bag, patting, and dust collection is compact
and easy to operate;
4. It can provide pneumatic or electric control methods to achieve remote monitoring;
| Bag size application | 1000x1000x1600 mm |
| Power Source | AC 380 v ± 5%50 Hz |
| Air source pressure | ≥ 0.6MPa |
| Air consumption | ≤ 0.6 m ³/min |
| wind volume for dust-removal | 800-2500m3/h |
| Environment humidity | -100C-400C |
| Cutting capacity | 10-20 bags/h (manual) |
The bulk bag dumping station is suitable for various industries such as pharmaceuticals,
chemicals, food, plastics, rubber, minerals, chemicals, building materials grain, and feed.
Company Profile

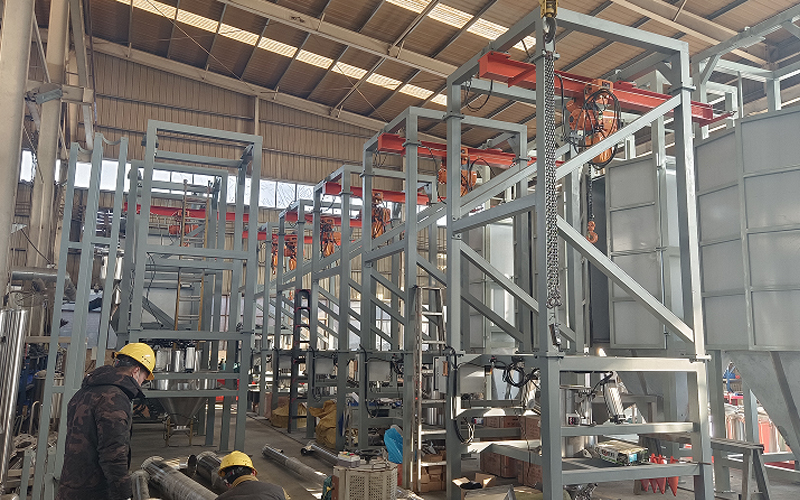

We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
