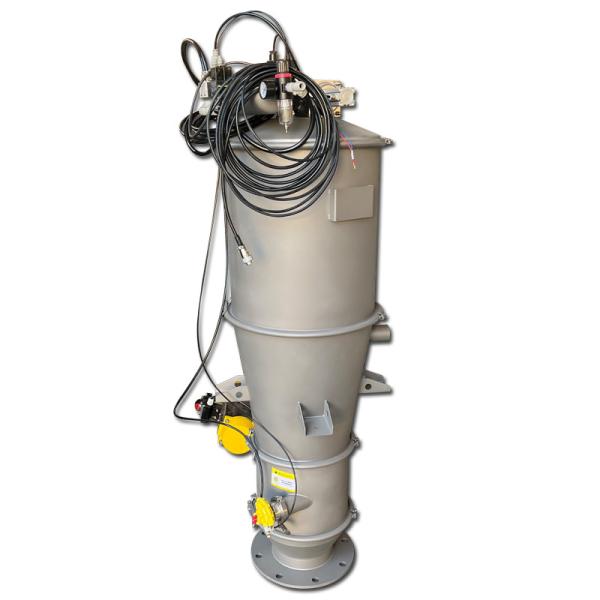

The mobile vacuum loader, a stainless steel powder suction machine, ensures dust-free
material feeding through vacuum conveying in a pipeline. This conveying method can
environmental pollution by dust, improve the working environment, and reduce the
pollution of the environment and personnel to the material, thereby enhancing
cleanliness. Since it uses pipeline conveying it occupies less space and can complete
powder conveying in narrow spaces, making the working area look tidy and beautiful.
Meanwhile, the vacuum loader can reduce labor intensity and work efficiency; it is the
preferred conveying method for most powder materials.

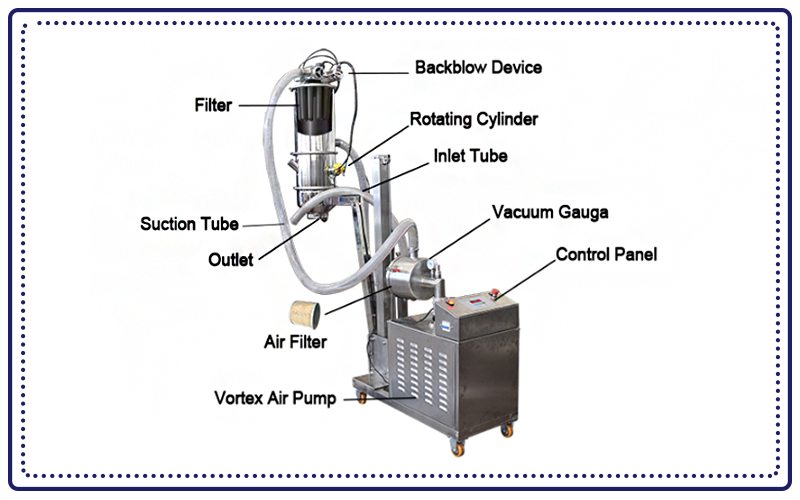

The vacuum loader is composed of a vacuum pump or Roots blower, stainless steel
suction nozzle, conveying steel wire flexible hose, PE device, air compressor
back-blowing air bag, pneumatic loading door equipment, and automatic control
equipment for vacuum hopper material level, etc. The entire system is effectively
designed and meticulously manufactured. When the vacuum loader is working, it uses
the vortex pump to evacuate the air inside, creating a negative pressure at the nozzle
inlet and inside the loader. The powder material is drawn into the suction nozzle along
with the external air, forming a material-air mixture that travels through the suction to
the hopper. In the hopper, the air and material are separated. The separated material
falls automatically due to its own weight and is collected in the storage bin. When
discharging the material, the pneumatic three-way valve closes, and the storage bin
door opens automatically. The material falls into the equipment'sper, and at the same
time, the back-blowing air bag automatically cleans the filter, causing the attached
material to fall off along with the material being, completing the discharge process.
1.Dust-free and sealed: The vacuum loader uses sealed pipelines for material
conveying, and the entire conveying process is completed in a completely sealed
state, dust pollution.
2.High degree of automation: The vacuum loader controls materials in an
automated manner, transporting them according to preset parameters without the
need for direct human operation
3. Space-saving: Due to pipeline transportation, the vacuum loader occupies less
space and can complete the conveying of powders in narrow spaces, making
working space look neat and beautiful.
4. Improve work efficiency: The vacuum loader can reduce labor intensity and
improve work efficiency.
5. High safety: The vacuum loader uses air as the only power source, which is
an intrinsically safe explosion-proof conveying equipment, suitable conveying
flammable and explosive materials in occasions with high explosion-proof
requirements.
6. Easy maintenance: Due to its simple structure, it is quite convenient for
maintenance and repair.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |

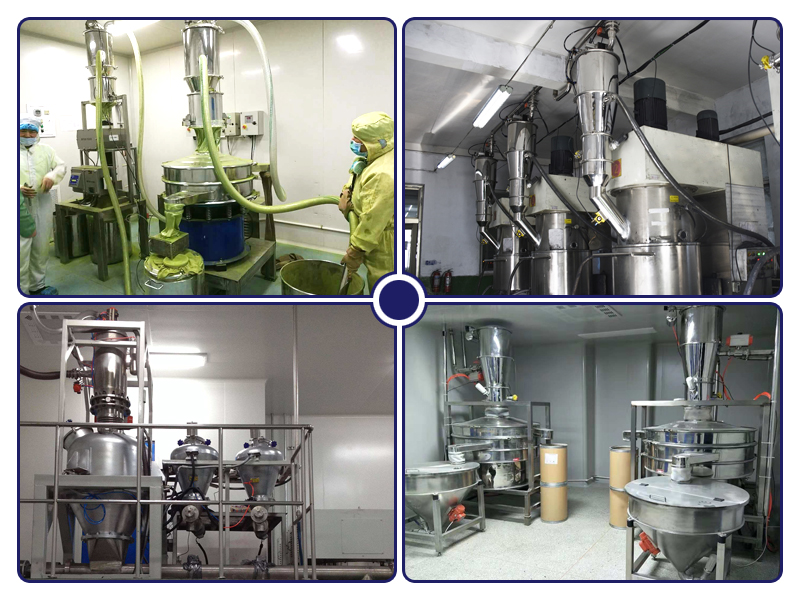

Wide range of applications: The vacuum loader is mainly used for conveying
powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying
overly moist, sticky, or heavy materials.
