Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

EVERSUN Machinery (Henan) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

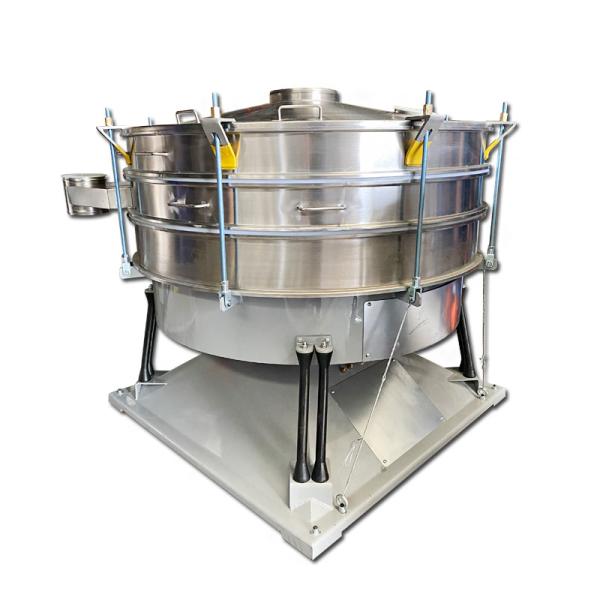

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

Brand Name : EVERSUN

Model Number : ZPS

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union

Supply Ability : 5000set/year

Delivery Time : within 7-15 work days

Packaging Details : Standard export wooden cases

Key Words : Durable Swing Screen

Working Method : Continuous automatic

Amplitude : Adjustable

Usage : Food, chemistry, etc

Layer : 1~5 Layer

Customized Service : Support

Motor : Vertical Vibrating Motor

Screen Size : 200-2600mm

Function : Screening\sieving

Color : Customers' Request

Material : Stainless steel 304

Screening Size Range : From 1mm to 100mm

Noise : Low Noise

Contact Now

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

The simplest screening is the mechanical simulation of binocular screening, and the rocking

screener is the mechanical simulation of this. It is currently most effective simulation of the

principles of manual screening (screening accuracy, efficiency, and screen life are 5-10 times

that of conventional circular screens). is suitable for all fine and ultra-fine powders and granular

materials, especially difficult-to-handle materials. The simplest screening is the mechanical

simulation of binocular, and the rocking screener is the mechanical simulation of this. It is

currently the most effective simulation of the principles of manual screening (screening

accuracy, efficiency and screen life are 5-10 times that of conventional circular screens).

It is suitable for all fine and ultra-fine powders and granular materials especially

difficult-to-handle materials.

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

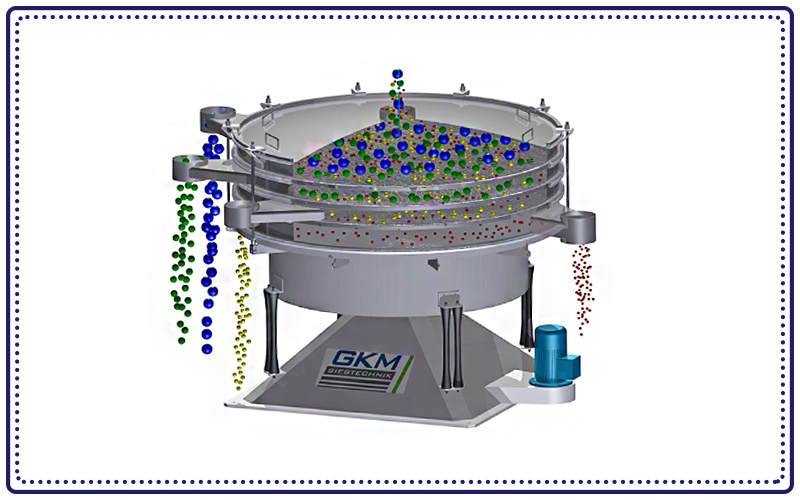

1. The basic rotary motion mimics the human manual sieving action, with an adjustable

amplitude of 25-40mm a frequency of 120-360 times per minute;

2. The residence time of the material in the sieve can be adjusted by the radial tangential

angles of the sieve;

3. The horizontal and projectile rolling motion of the material on the screen surface makes the

material evenly distributed from the center to the of the screen surface. Thus, it spreads axially

with the rotary motion. The fine particles complete the entire sieving process;

4. The horizontal and verticalations increase as the particles move, and the particles near the

sieve holes are successfully separated. Larger particles are sent to the outlet, where a adjustable

guide controls the rate. This is another factor in controlling the material's residence time;

5. This process is repeated between each layer of the sieve.


Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

1. The design is ingenious, which is conducive to extending the equipment's service life and

reducing operation and maintenance costs.

2. It operates at low frequency and small load, so the power system has a small impact on

the equipment and materials.

3. The equipment has a small volume, is lightweight, easy to install, convenient to maintain,

and consumes less power, with minimal noise pollution.

4. It has a large relative processing capacity high screening efficiency, and the screening

accuracy of the shaking screen is generally over 95%.

5. It has a fully enclosed structure with good sealing effect, there is no material dust pollution.

6. The discharge port can be adjusted at any position within a 360° circle, making it easy to

arrange process.

7. The screen is easy to replace and can meet the general material's dry and wet grading

requirements.

8. The cleaning device can be conveniently added the screen surface, effectively solving

the problem of screen surface blockage.

Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

It is suitable for dry and wet screening, sieving and filtering recovery in industries related to

food, mining, casting, abrasives, building materials cement, chemicals, fertilizer, light industry,

papermaking, grain industry, salt industry, and grain, etc.


Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve

Model Deck Equipment diameter Screen mesh Area(m2) Frequency
(r/min)
Screen slope
(degree)
Sreen mesh Amplitude
(mm)
Power
(kw)
EYBS-600 1-5 600mm 0.28 220-280 0-10 20microns
to 20 mm
20-70 0.75
EYBS-1000 1000mm 0.66 220-280 0-10 20-70 1.5
EYBS-1200 1200mm 0.98 220-280 0-10 20-70 2.2
EYBS-1500 1500mm 1.67 220-280 0-10 20-70 3
EYBS-1800 1-4 1800mm 2.37 220-280 0-10 20-70 4
EYBS-2000 2000mm 2.89 220-280 0-10 20-70 4
EYBS-2600 2600mm 5.3 220-280 0-10 20-70 5.5
Machine can be customized based on your need







Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve
Multi-layer Stainless Steel High-efficiency Sieve For Fine Screening Of Powdered Materials Circular Shaking Sieve




We have been specializing in the production of Screening and conveying equipment for 13 years.
China's vibrating screen industry top three. And we have done matching and OEM for many large
companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New
Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our
factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City,
Henan Province.
