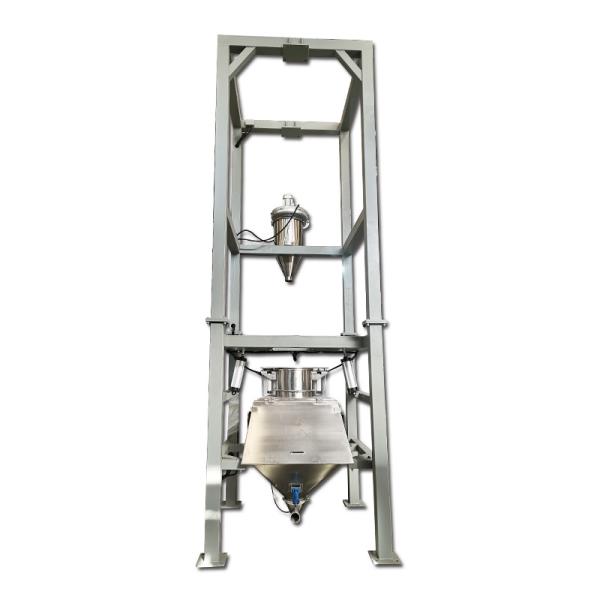

The ton bag unpacking machine is mainly used for the opening and unloading of ton
bags, and its fast unloading method is suitable for various. The main purpose is to
reduce labor intensity and reduce dust. Provide a safe and sanitary working
environment. With the improvement of living standards, our requirements for
environmental protection getting higher and higher. In order to reduce the dust
generated during the unpacking process, which is harmful to the environment and
human body, it is recommended to use company's new product, the unpacking and
dust removal integrated machine.
The ton bag unpacking machine lifts the ton bag packaging material to the feed port,
and after the packaging bag discharge port is manually removed the flow control
valve and the attached vibration discharge device are opened to promote the powdery
granular material in the packaging bag to fall into the lower hopper through. The
operator places the material bag on the bracket and pushes it into the iron grid, then
the operator cuts a vertical slit in the material bag and shakes the material to empty it.
The material in the material bag can be conveyed to a feeder through the hopper. The
built-in fan recovers the dusty gas generated during the opening process, and the
automatic pulse reverse blowing dust collector is regularly cleaned. The emptied
material bags can be sent to the optional equipment, the waste bag compressor, for to
ensure the cleanliness of the site environment. During operation, its material hopper can
effectively combine with its glove box design, which effectively achieves 100% of dust
and gas from the operator, and the matched filter dust collector, star-shaped discharge
valve, etc., are used for uniform discharge.
1. Simple structure and easy operation.
2. The beating device can ensure that materials smoothly enter the next process from
large bags.
3. The breaks up lumps during the bag opening process, ensuring the smooth progress
of the next process.
4. Fully automated operation, improving production efficiency and reducing labor intensity.
5. Closed bag opening, eliminating dust flying, improving the working environment, and
reducing production costs.
6. Integrated design of bag opening, beating, crushing, and removal, with a compact
structure and convenient operation.
7. Can provide pneumatic or electric control methods, achieving remote monitoring.
| Bag size application | 1000x1000x1600 mm |
| Power Source | AC 380 v ± 5%50 Hz |
| Air source pressure | ≥ 0.6MPa |
| Air consumption | ≤ 0.6 m ³/min |
| wind volume for dust-removal | 800-2500m3/h |
| Environment humidity | -100C-400C |
| Cutting capacity | 10-20 bags/h (manual) |
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food,
medicine, and chemicals for unpacking and discharging bags of dry powders and granular
materials, such as plastic resins and food additives.
Company Profile
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
