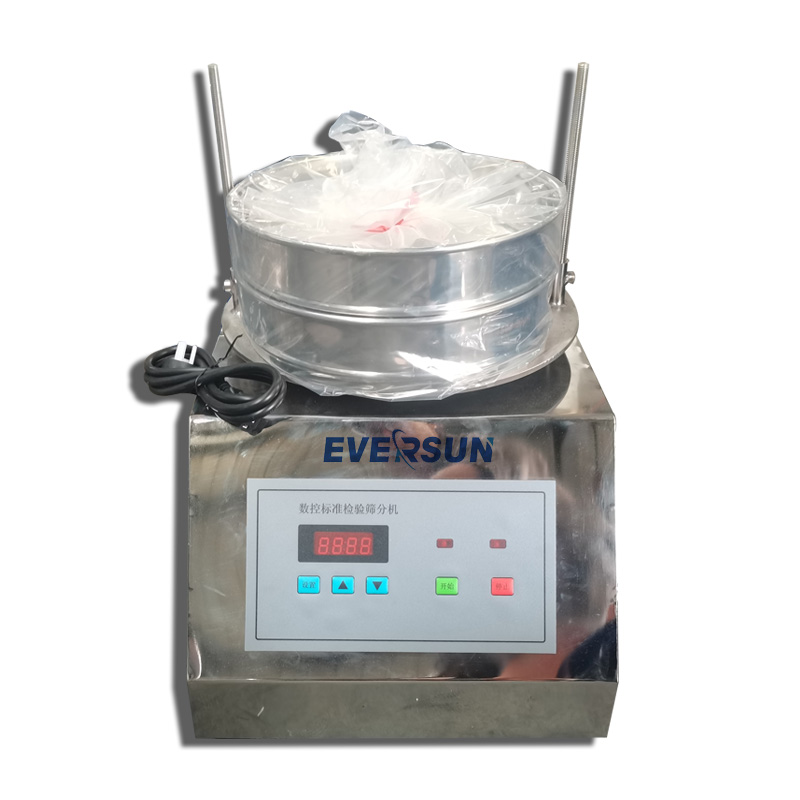

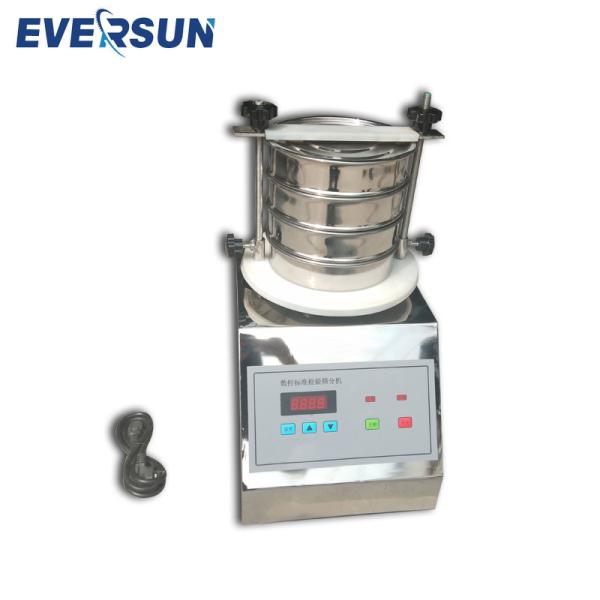

Experimental sieve
The experimental sieve is a standard experimental sieve that integrates particle grading and
liquid filtering. It is suitable for laboratories and quality inspection rooms. It performs analysis
of the particle size structure of granules and powders, featuring low noise, high efficiency,
and high accuracy. It uses a new type of dedicated power to produce multi-frequency
high-speed vibration, efficiently sieving samples. The standard sieve body ensures high
accuracy in sample analysis. The electronic timer can set the screening for the same material
according to needs, ensuring the uniformity of the analysis data and minimizing inspection
errors, thereby making accurate judgments about product quality.
The experimental sieve uses a vertical vibrating motor as the vibration source of the whole
machine. The vibrating motor drives the upper vibrating pan to vibrate and then the vibration
is transmitted to the sieve frame placed on the upper part of the vibrating pan. Then, the
sieve frame with the required mesh size separates the smaller than the sieve pore size to the
lower sieve frame. Thus, the material in the sieve frame can be effectively filtered, graded,
and inspected.
1. The experimental sieve has high efficiency, is exquisitely designed and durable, and can
screen any powder or liquid.
2. has a small volume, does not occupy space, and is easy to move.
3. The sieve can accommodate multiple layers of experimental sieves (including the sieve),
allowing for precise separation of particles into 2-7 fractions.
4. It can automatically shut down at a set time, ensuring experimental reproducibility.
5. It has comprehensive functions and is easy to operate, with low noise and light weight.
6. It operates on a platform, does not require fixation, and for adjustable amplitude.
It is suitable for precise particle size analysis of granules and powders in laboratories and
quality inspection rooms; electronic timer, the same material can set to the same sieving
time according to needs, ensuring the accuracy of sample analysis data, and reducing
errors to a relatively low level. Combined with the ultr system, it has the function of
automatic screen cleaning, which improves sieving efficiency and detection accuracy.
| Model | Diameter
(mm) | Mesh size
(mesh) | Layer | Vibration
frequency
(t/min) | Amplitude
(mm) | Power
(kw) | Motor
speed
(r/min) | Dimension
(mm) |
| ESYS-200 | 200 | ≤1000 | 1~8 | 1400 | 1~4 | 0.12 | 1400 | 360*300*470 |
| ESYS-300 | 300 | 1~8 | 1400 | 1~4 | 0.12 | 1400 | 410*380*350 |
It is widely used in scientific research and production in departments such as metallurgy,
powder, chemical industry, medicine, building materials, geology, national defense. It is a
vibrating sieve for particle size distribution, liquid solid content, and impurity content of
granular and powdery materials in laboratories and inspection rooms.

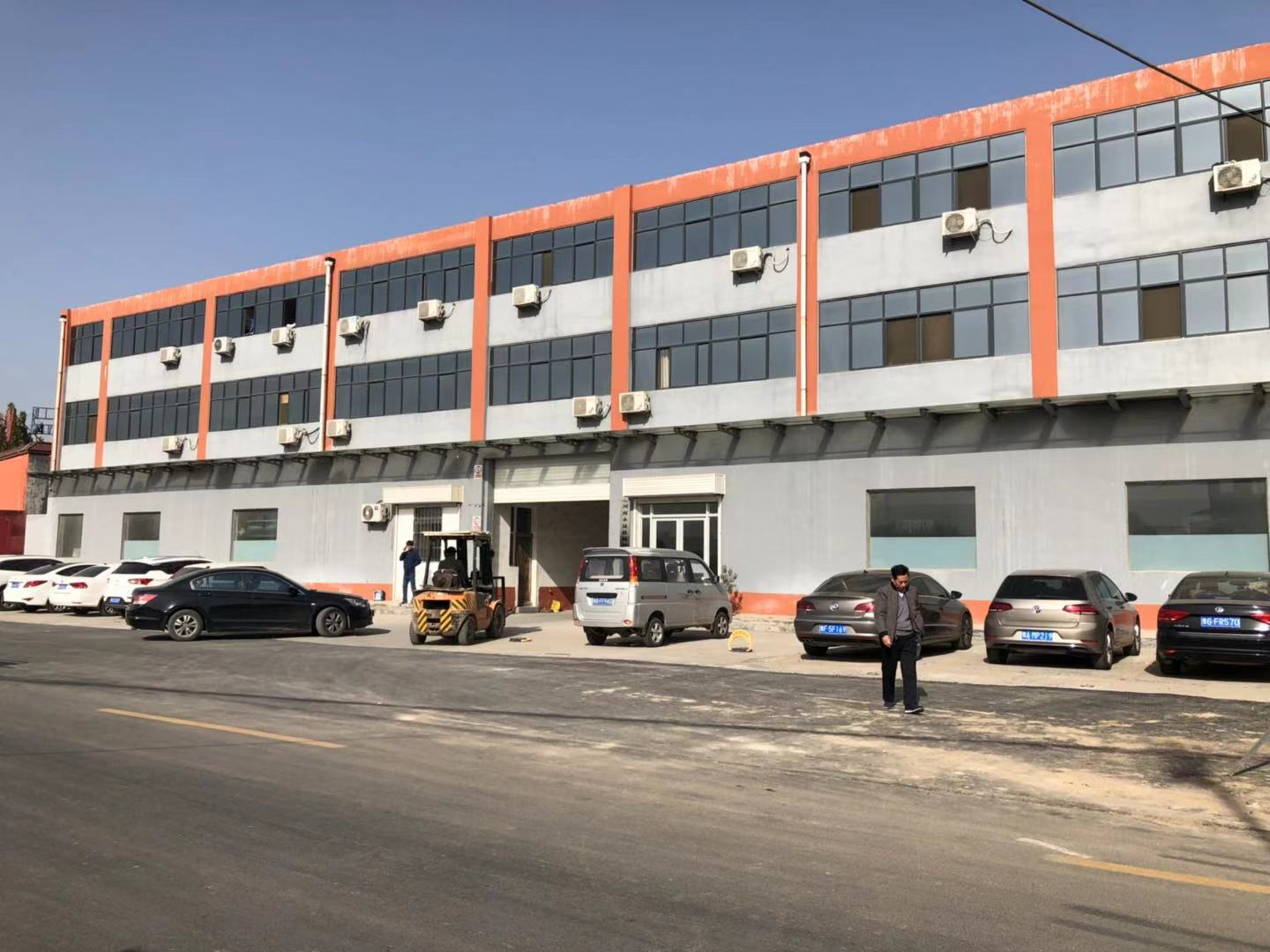

Company Profile
We have been specializing in the production of Screening and conveying equipment for 13
years. China's vibrating screen industry top three. And we have done matching and OEM for
many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA,
we have OEM for his China region. And our products are often exported to Australia, Thailand,
Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our
factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang
City, Henan Province.
