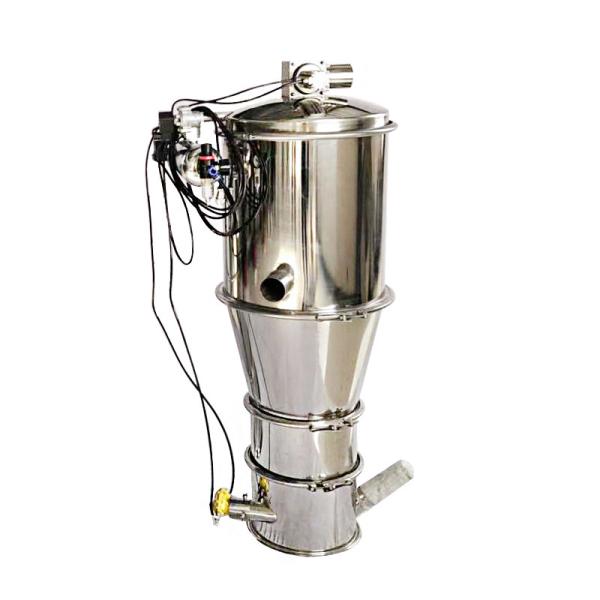

Vacuum Conveyor System
The vacuum loader, also known as the vacuum conveyor, is a dust-free, enclosed pipeline
conveying equipment that transports granular and powdered materials using vacuum. It
utilizes the pressure difference between vacuum and the ambient environment to create
gas flow within the pipeline, which moves the powdered materials, thus completing the
conveying of the powders.
Vacuum conveying is a pipeline sealed conveying method, which can eliminate dust
environmental pollution, improve the working environment, and at the same time reduce
pollution of the environment and personnel to the material, improving cleanliness. Since it
is pipeline conveying, it occupies less space and can complete the conveying of powders
in spaces, making the working space look tidy and beautiful; it is not limited by the distance.
At the same time, the vacuum loader can reduce the labor intensity workers and improve
work efficiency; it is the first choice for conveying most powdered materials.

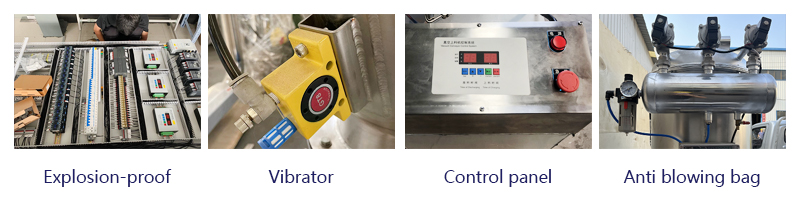

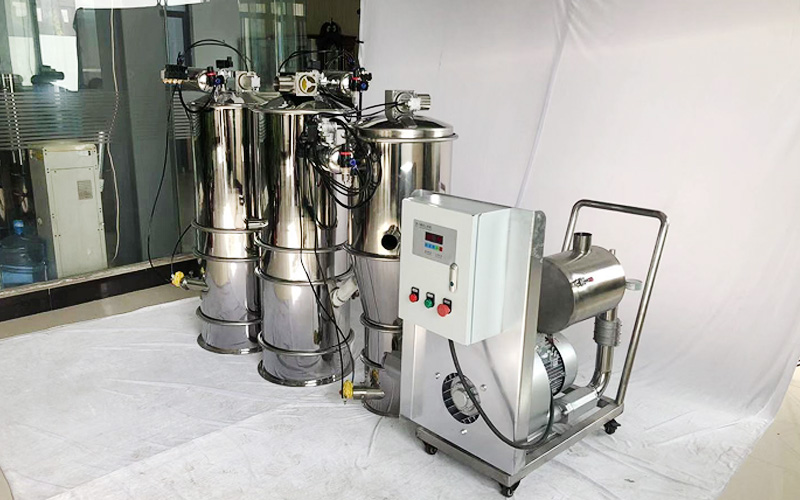

The vacuum loader is composed of a vacuum pump or Roots blower, stainless steel
suction nozzle, conveying steel wire flexible hose, PE filter device, compressor
back-blowing air bag, pneumatic loading door equipment, and vacuum hopper material
level automatic control equipment. The entire control system is designed to be and is
manufactured with precision.
The compressed air enters the hopper and then carries the material to flow in the
pipeline. Due to the negative pressure in the pipeline, it can push the transportation
of materials, ensuring the conveying effect of materials. By controlling the material
level, the vacuum loader can better store and discharge the materials.
1. Pneumatic vacuum sealed conveying: The sealed conveying of various powder
materials can meet the diverse conveying needs of different customers, reduce
manual labor intensity, and improve work efficiency.
2. Reduce dust pollution in the environment: improve the working environment; Reduce
environmental and personnel pollution of materials and improve cleanliness.
3. It can be used for both long and short distances, occupying a small space: it can
complete the powder conveying in narrow spaces, making the workspace beautiful and
generous, without being limited by long and short distances.
4. No dead corners or gaps, the equipment has no gaps or dead corners that are prone
to material accumulation, and the surface is easy to visually inspect.
5. Real time monitoring of electronic control system: PLC is connected to the control
system and can switch between manual and automatic modes at any time. Process
control is achieved by a programmable or electronic control system.
6.System production line feeding: The entire conveying process is carried out in a closed
system, and there will be no powder leakage.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |

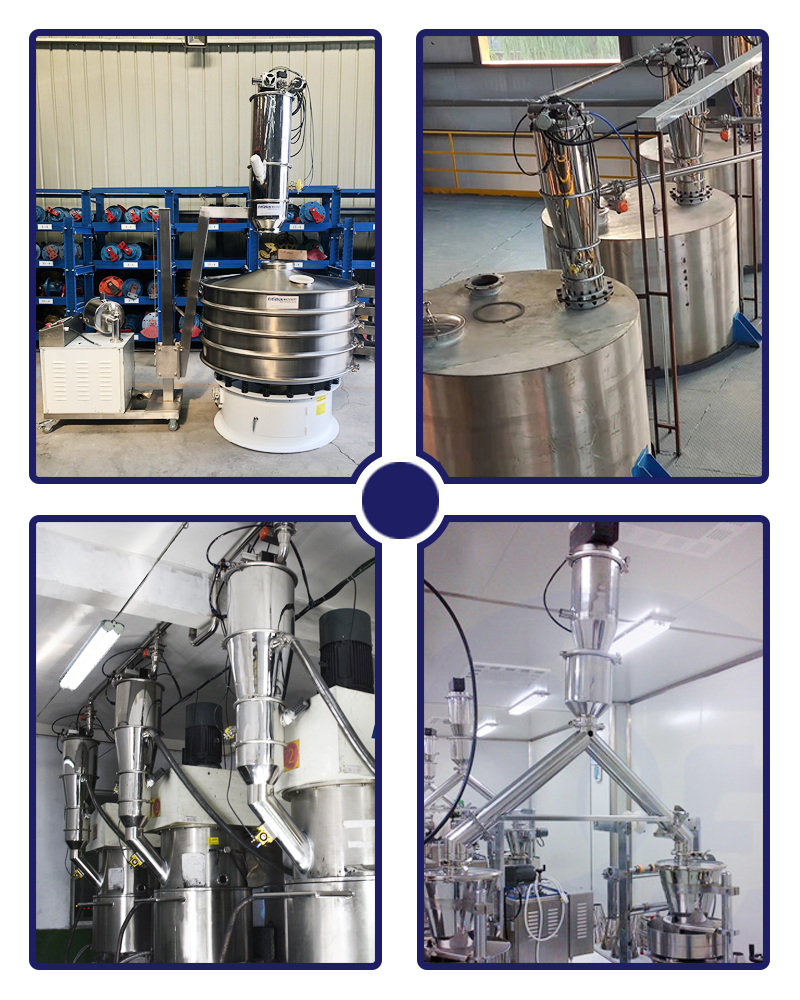

The vacuum feeder is suitable for conveying various powders, granules, flakes, and fibrous
materials, and is widely used in multiple industries such as chemical, pharmaceutical, food,
metallurgy, plastics, etc.
